DIY Eurorack Module

DESCRIPTION

Specifications
Supply: n/a
Size: n/a
Depth: n/a

Documents
Schematic
Github
License: CC-BY-SA

6 things to know about Axo Control

The Axoloti is a fantastic and hugely powerful sound board from Belgium, with a very active community developing and sharing patches and porting across open-source code including Mutable Instruments modules.

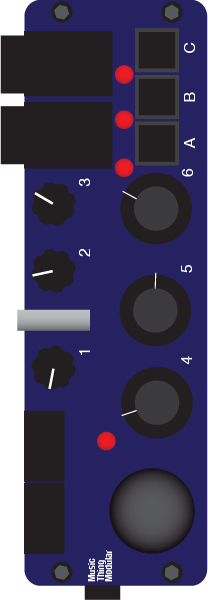

Axo Control is an open-source controller board inspired by the Nord Micro Modular. It adds 6 knobs, 3 buttons, 4 LEDs and a joystick in a unit the size of a game controller.
It's a completely passive board, connecting to headers that can be soldered onto to the board - so it's a pretty easy DIY build suitable for confident beginners.
Here's a nice write up of the Axo Control from CDM.
And here's a simple video demo (with the audio playing through a TV in an apartment on a South African holiday):
And here's another quick demo with the prototype:

A post shared by Tom Whitwell (@tomwhitwell) on Jan 17, 2016 at 6:02pm PST
Very few people have had trouble constructing the Axo Control board, but if you need advice, check the thread on the Axoloti community or the Github issue list.
